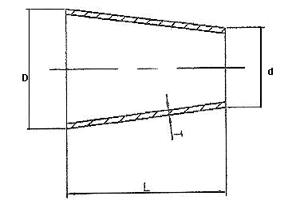

3A-31W-WELD CONCENTRIC REDUCER

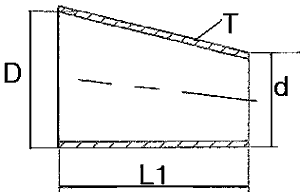

3A-32W-WELD ECCENTRIC REDUCER
| SIZE |
ΦD |
T |
Φd |
T |
L |
L1 |
| 1.5"*1" |
38.1 |
1.65 |
25.4 |
1.65 |
50.80 |
50.80 |
| 2"*1.5" |
50.8 |
1.65 |
38.1 |
1.65 |
50.80 |
50.80 |
| 2.5"*1.5" |
63.5 |
1.65 |
38.1 |
1.65 |
101.60 |
101.60 |
| 2.5"*2" |
63.5 |
1.65 |
50.8 |
1.65 |
50.80 |
50.80 |
| 3"*1.5" |
76.2 |
1.65 |
38.1 |
1.65 |
152.40 |
152.40 |
| 3"*2" |
76.2 |
1.65 |
50.8 |
1.65 |
101.60 |
101.60 |
| 3"*2.5" |
76.2 |
1.65 |
63.5 |
1.65 |
50.80 |
50.80 |
| 4"*1.5" |
101.6 |
2.10 |
38.1 |
1.65 |
254.00 |
254.00 |
| 4"*2" |
101.6 |
2.10 |
50.8 |
1.65 |
203.20 |
203.20 |
| 4"*2.5" |
101.6 |
2.10 |
63.5 |
1.65 |
152.40 |
152.40 |
| 4"*3" |
101.6 |
2.10 |
76.2 |
1.65 |
101.60 |
101.60 |
